AM - Requirements Management

Central management of requirements

Include specifications

Requirements include specifications that play an important role in manufacturing processes and on for initial sample inspection reports, FMEAs, inspection plans, SPC, incoming and outgoing goods inspections, and for complaint management. For example, if you work with technical drawings in your company, these include specifications such as variable dimensions or attributive characteristics that place special requirements on your processes. These specifications are available to you through iqs Requirements Management (AM) throughout the entire CAQ system.

Requirements and products linked

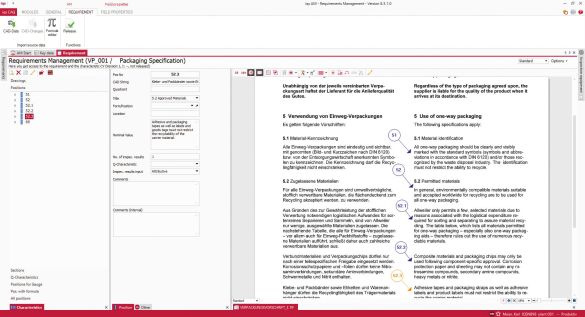

Reliably manage all versions of requirements in Quality Center (QC). This includes requirements from inspection specification, legal guidelines, packaging regulations, 2D drawings, and associated 3D PDF. This way, the parts master data can always be linked centrally with current documents. Each iqs module provides access to information such as current documents, drawings, and usage of characteristics.

Automatic characteristics generation

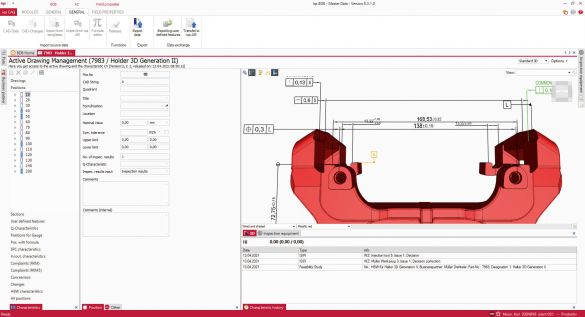

The Requirements Management automatically imports specifications from all common CAD formats and PDF files into the CAQ system. This way, centrally defined requirements are available to all modules and can be adopted as a characteristic, when creating an FMEA, for example, and added by you if required.

Integration of scanned documents

You don’t have access to the data file? No worries. With the help of optical character recognition, OCR, characteristics or specifications can also be taken from scanned documents (.tif, .pdf) and integrated into iqs Requirements Management.

Change management

Stay on top of things: All changes are documented and clearly visualized - so you can just keep track of the modifications between versions. This allows you to generate a characteristic life cycle – all processes and results for each
characteristic can be displayed at the touch of a button.

Functions

  • Convenient management of requirements
  • Access to all documents and their specifications from all QC-modules for example: FMEA, inspection plan and control plan, complaints management and data capture
  • Characteristics history available at the touch of a button
  • Guarantee of document authenticity by importing image and data formats
  • Automatic drawings import with nominal values and tolerances from CAD files, independent from the system used to create it
  • Import of scanned documents (.tif, .pdf) through OCR
  • Import and processing of 2D and 3D PDF files
  • Extracting tables in drawings
  • Stored 3D PDF for improved visualization and easier communication between customer and supplier
  • Grouping of characteristics in, e.g. construction elements via UDF (User Defined Features)

Quality Center

Discover more QC modules.

Even as a stand-alone solution, each module of the PeakAvenue Quality Center is a specialist in its field. In combination with other modules, the software offers you the best possible functionality and maps the quality control loop.

FMEA

Requirements serve as the basis for reusable FMEA modules.

Learn more ...

Initial Sample Inspection Report

Rapid creation of the initial sample inspection report using specifications from part families.

Learn more ...

Inspection Plan/Control Plan

Requirements serve as the basis for reusable inspection plan modules.

Learn more ...
